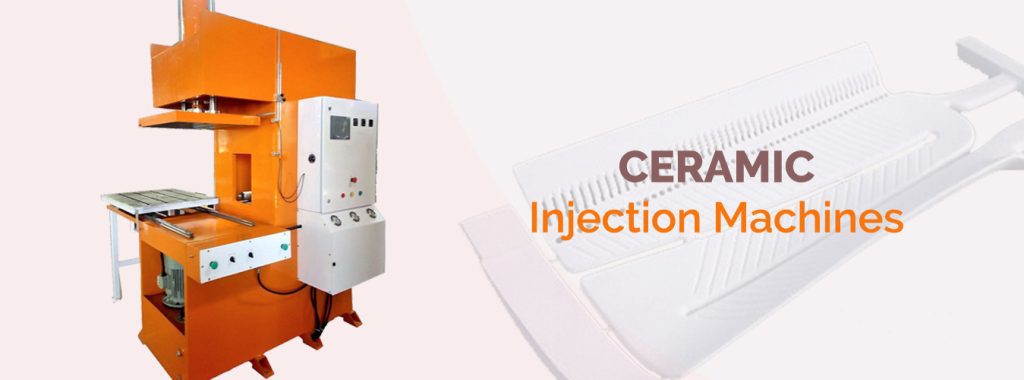

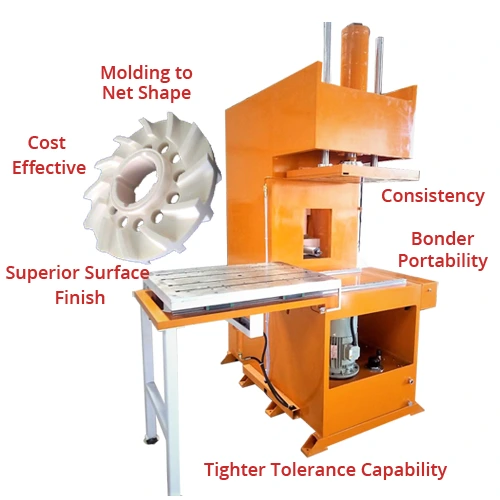

Ceramic Injection Machine

Our Ceramic Injectors combine high quality engineering and cutting-edge design features, ensuring high productivity and efficiency of the Ceramic Injection Moulding Process.

All ceramic contact parts are hardened for long life. Available in 20T/35T/50T Models.

The operating costs are very low due to the machines speed, versatility, low energy consumption, ease of maintenance and the unique ability to accurately control temperatures.

STANDARD MACHINE FEATURES

Robust C-Frame Press (12/20/35/50/75/100tons)
X-Z settable side injection nozzle (motorised Nozzle setting)
Easy replacement of Seals
T-Slots for die clamping
Touch Panel with Self Diagnostics are standard features
Jib crane (Die handling) - (Optional)
Multi-zone temperature control
All ceramic contact parts are hardened for long life
Highly reliable electro-hydraulics package
Platen Cooling
Digital Hydraulics (Time/Volume based injection) - (Optional)

CERAMIC DRY POWDER MIXER

This is a unique rotating V type Dry powder Mixer Blender and is used to thoroughly mix the various Ceramic powders to form a uniform blend.

The V-drum Mixer-Blender is specially designed to ensure thorough mixing in the shortest possible time. Ease of Load-Unload of ceramic powders is an important feature of the machine.

HOT CERAMIC CHARGE MIXER

This Paddle type Mixer-Blender is designed to mix thermoplastic binders with the ceramic powders to produce a uniform homogenous injectable blend.

The Mixer-Blender machine has a heated mixing vessel with digital temperature control. The homogenous Ceramic mass is transferred to the Ceramic Injector for injection moulding parts.

DEBINDING AND SINTERING KILN

This is a Hearth Retractable Furnace/Shuttle Klin. It is offered in Gas fired or electrically heated variations. Max temperature 1600C.

The same furnace is used for Debinding at lower temperatures and the cleaned inspected browns are sintered to preferred final temperatures to get the final usable product.

WHY CHOOSE US

Laxminarayan Technologies have a team of proficient service engineers who are experts in the field of Ceramic Injection Moulding Machines used to produce Industrial Ceramic Parts & Ceramic Cores for the precision casting industry.
